Apr 2013 10

I get asked quite frequently what the difference is between the screens we use versus the screens you can buy from eBay.  The following post explains the quite subtle but very important differences.

The photo below shows the screen we use on the left and a screen you can buy on eBay on the right.

20130501-013202 PM.jpg

Above: Left: Bournemouth iPhone Repairs supplied screen. Right: eBay iPhone 4S Screen

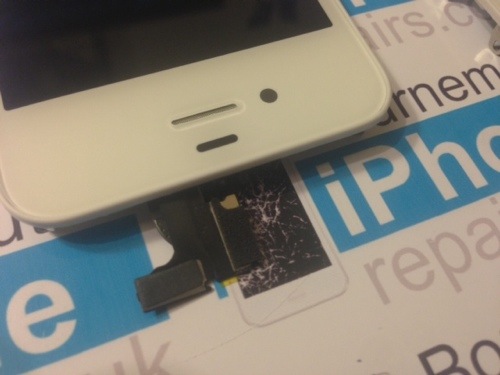

The photo below shows the extra two adhesive pads added to the LCD and touchscreen connectors as fitted by Apple. These extra pads ensure that the two connectors are electrically grounded and the LCD displays a crisp picture.  When the metal retaining clip is fitted, which also doubles as the wireless antenna, that the correct pressure is applied keeping them fully seated even after being dropped.  Also added to the LCD screen is a new 3 piece speaker mesh assembly rather than having to reuse the existing mesh, like other repairers.

Above: A picture of an iPhone 4S screen supplied by Bournemouth iPhone Repairs

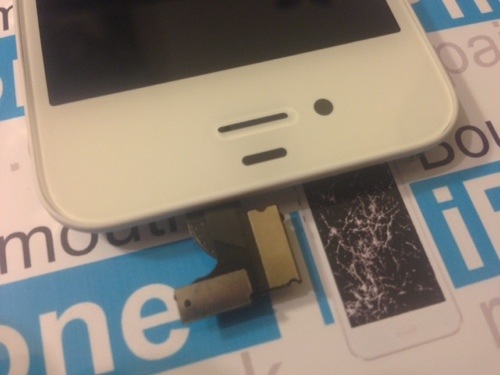

The eBay iPhone 4S screen comes supplied with no conductive pads on the touchscreen and LCD connectors. Also no speaker mesh.
20130501-013222 PM.jpg

Above: A picture of an iPhone 4S bought from eBay.

The photo below shows our supplied screen, it includes a UV filter and foam gasket over the proximity sensor window, the 3 piece speaker mesh fitted and a new adhesive ring around the camera lens holder.
 20130501-013231 PM.jpg

Above: A picture of an iPhone 4S screen supplied by Bournemouth iPhone Repairs

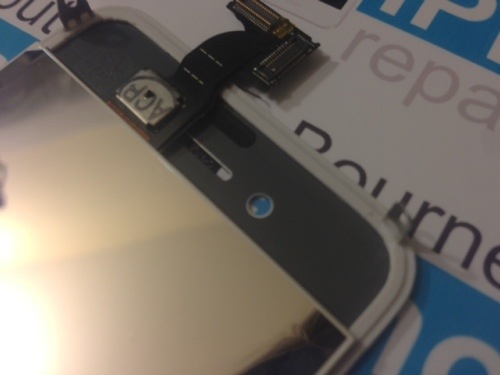

The eBay iPhone 4S screen comes supplied with no speaker mesh, no UV light filter or foam gasket around the proximity sensor window and no ways of securing the camera lense assembly.  Without the UV light filter and foam gasket the display wont turn off when you raise the phone to your face.  This will generally mean you'll press the end call, mute or hold button with your cheak.  Very annoying!!
20130501-013240 PM.jpg

Above: A picture of an iPhone 4S bought from eBay.
